Ningbo Ningqiao Water Meter Co.,Ltd.
Buy Now

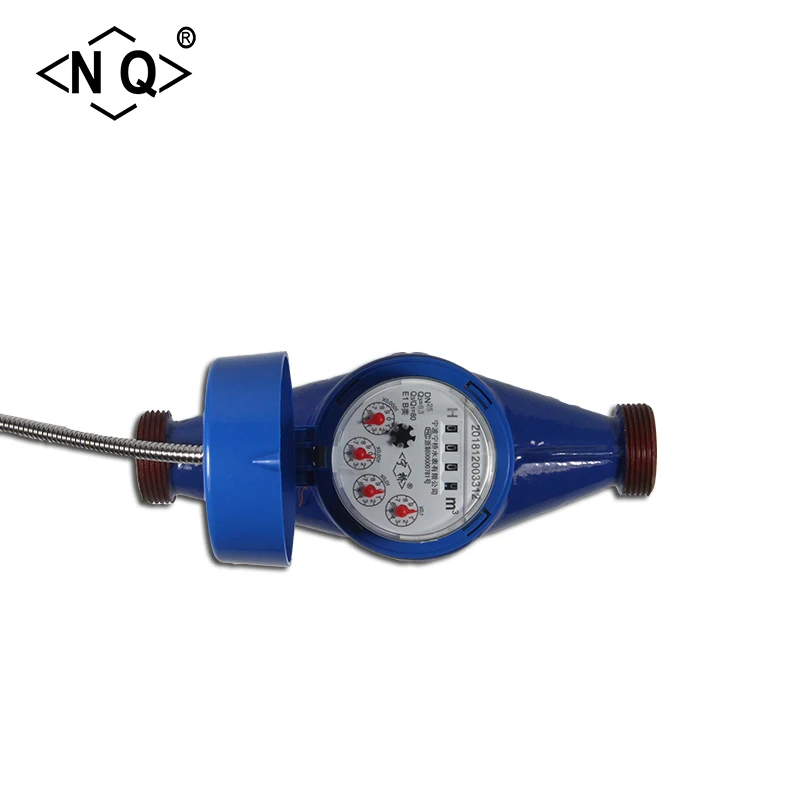

Manufacturer Competitive Price Multi jet Dry Type Direct Reading Electronic Remote Sealed Water Meter Brass Body DN15-25

Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
NQ or OEM
Model Number:
LXHY-15D-25D
Type:
Electromagnetic meters
Material:
Brass Body+Brass fittings
Product name:
pulse water meter
Color:
Blue+yellow
Size:
DN15~25
Feature:
Remote Control Reading Intelligent Water Meter
Standard:
ISO 4064 ClassB
Water temperature:
40 C(Hot Water Meter: 90 C)
Working Pressure:
16Bar
Packing:
10 pcs/carton box
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
One each inner box.
10 pcs in the carton box.
Port
Ningbo or Shanghai
Lead Time :
Quantity(Pieces) 1 - 20000 >20000
Est. Time(day) 10 To be negotiated
Our Advantages
Technical Parameters

Specification:
Pulse content: 1 liter/pulse, 10 liters/pulse, 100 liters/pulse for option.
Type: Multi jet dry type romote reading, reed switch


ELECTRONIC REMOTE-READING WATER METER

1.Transmission sensors for option: reed switch,hall effect,optical switch.

2.Installed in vertical pipeline and is suitable for household as branch meter and easy for installation.

3.Selected high quality materials for stready & reliable characteristic and good looking.

4.Magnet-proof and a signal will be transmitted when 10 or 100 liters water passing.

5.Pointer or numeric register,dry dial or liquid sealed,iron or brass body,cold or hot water meter for option.

Note:Technical data conform to ISO4064.

Main techinical:

Meter size Dia DN (mm)
Class
Qs Overload Flow
Qp Nominal FLow
Qt Transitional Flow
Qmin Min Flow
Min Reading Lectura
Max Reading Lectura
m3/h
1/h
m3

15
A

3

1.5
150
60

0.0001

99999
B
120
30

20
A

5

2.5
250
100

0.0001

99999
B
200
50

25
A

7

3.5
350
140

0.0001

99999
B
280
70

32
A

12

6.0
600
240

0.0001

99999
B
480
120

40
A

20

10
1000
400

0.0001

99999
B
800
200

50
A

30

15
4500
1200

0.0001

99999
B
3000
450

INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)

SELECTED METER TYPE
1. Connecting wire 1.5m
2. Sensor connecting means:
Three cores wire for output,red for voltage positive polar, white for output,black for common ground


WORKING CONDITION
Water temperature:≤50℃ for cold water meter
Water temperature:≤90℃ for hot water meter
Working pressure:≤1.6Mpa

Dtailed Images
Our Service
Packing & Delivery
Our Company

NINGBO NINGQIAO WATER METER CO.,LTD is located near the Hang zhou bay with beautiful scenery and
convenient teaffic.Our factory was founded in 1972,has a long history of production and superd technology.
It is a high-rech private enterprise which is set in a product development,manufacturing,sales and service in
one type.we are mainly produce the brand of "ningqiao" Copper,bieces of pipe,and other products,we have a
water meter prodnction base,meter copper shell production bawe,with:smelting,metar paint,plastic injection
detection,mold,assembly blant.

FAQ

Q.Are you the factory?
A.Yes.We are factory.Ningbo Ningqiao WATER METER was established in 1972,specializes in producing all
kinds of water meters.Our factory is located in Industrial Zone,Cixi,Ningbo,China.Welcome your visit to our
factory.
Q.How to request a quotation from Ningqiao?
A.Simply call or send us E-mail with your purchase request.Be sure to include all requirements(like the type,
size,weight ,package and so on) in your request for quote.
Q.What are your quality control procedures?
A.Ningqiao strictly get the control of quality,which begin with material purchase and carry through to the end
of the production process by ISO9001.Before shipping,welcome the examination of goods.
Q.Are there any special requirements for OEM purchases?
A.Yes.We requires proof of trademark registration in order to print or emboss your trademark onto the product
or packaging.
Q.Do Ningqiao products come with a warranty?
A.Yes.We backs our products100%.Usually 3-10years product life guarantee(except environment influence,like
the chemical substance in water) ,and a generous1 year warranty on all purchases that begins with the bill of
loading.
